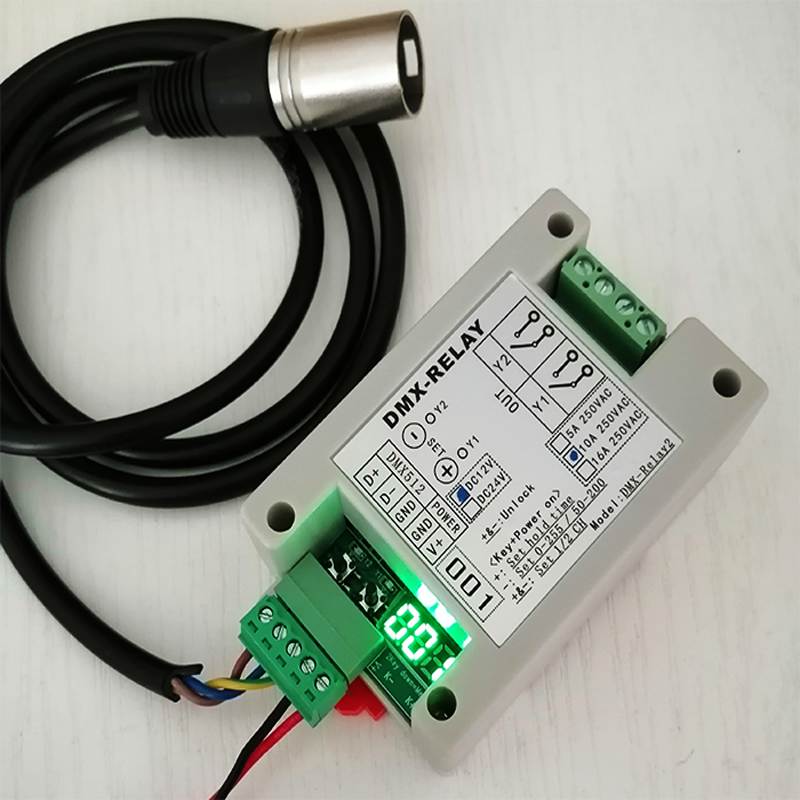

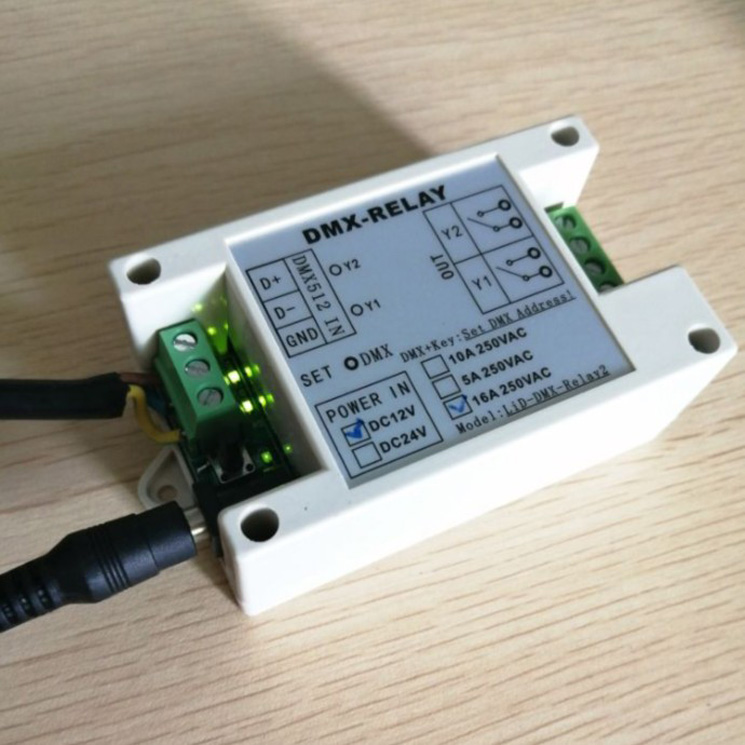

Professional 2-way DMX relay switch

Description：
1, support international standard DMX512 signal control 2 relay switches, occupying 2 DMX channels.
2, 3-digit LED digital tube display address and other information, 2 touch the switch setting key; Two switch synchronization indicators.
3, support 3 kinds of relay switch capacity version: 5A 220VAC; 10A 220VAC; 16A 220VAC, please
Check the box label for confirmation!
4, support 2 keys to quickly set DMX512 address code: 1~512.
5, support manual control switch: no DMX signal, long press for about 1 second, you can switch each relay.
6, support no button operation delay self-locking button function, prevent misoperation Settings.
7, support anti-interference Settings, signal stability.
8, support two channel range control modes:
Mode Cv.1: Relay off = Channel value 0~127; Relay closure = Channel value 128~255
Mode Cv.2 (Default mode) :
Relay off = Channel value 40~60=50; Relay closure = Channel value 190~210=200
9, support two channel control modes:
1.CH mode: 1 channel, control 2 relays simultaneously switching, expansion mode (5A/10A/16A expansion)
Flow is 10A/20A/32A, connection mode: 2 switches in parallel when 1 switch).
2.CH mode (default mode) : 2 channels, each channel independently controls each relay switch.
10, the power supply and DMX512 signal interface adopts pluggable Phoenix terminal; Supports two operating power supply voltage versions
12V or 24V, the recommended power adapter current is greater than 500mA; For each terminal function, see the corresponding end
Subidentification; Please confirm the wiring, the power supply voltage 12V or 24V can not be connected wrong!
11, appearance size: 81*50*31mm
