ArtNet audio and lighting synchronization DMX recorder central control UDP/485/232 broadcasting control mobile App lighting control console

Description：It supports 4 standard bidirectional DMX photoelectric isolation protection ports and 512*4=2048 DMX channel control. The four DMX ports support bidirectional input/output mode switching.
2. Supports synchronous broadcast control of music and lighting; Audio supports HiFi-level lossless decoding: Supported audio formats include: mp3,wav,Flac,ape. Supports 3D audio effects and EQ tuning configuration.
3. Support the display of audio, lighting, progress, time and file names in Chinese. Supports real-time dynamic display of audio waveforms, making audio visible (with screen version).
4. Supports 1-line output and 1-line input (mixing input configuration switch).
5. Supports dual network ports for hand-in-hand cascading expansion for convenient wiring (the Wi-Fi version only supports a single network port). It can be directly connected to computer network ports, switches, routers, etc. for interconnection control.

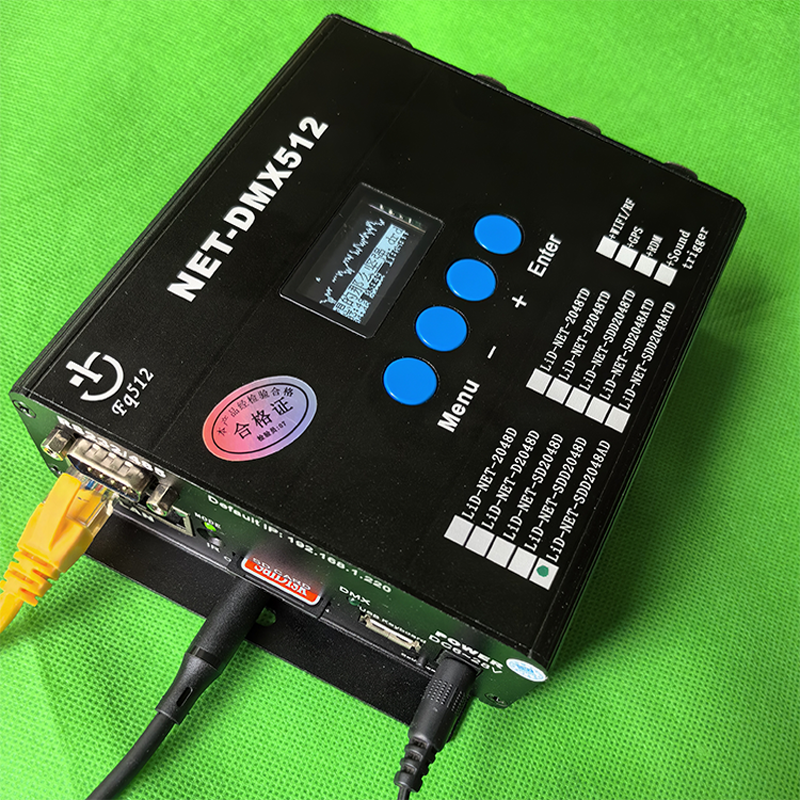

6. Supports high-definition OLED screen display and quick control through key menus; Supports menu display in both Chinese and English languages (supported on the screen version).
7. Supports infrared remote control recording and broadcasting operation.
8. Supports external USB keyboard, allowing the device to be controlled via the keyboard, which is intuitive and quick.
9. Supports desktop or wall-mounted application installation. Power supply voltage range: DC6 to 28V.
--------------------------------
10. Support for network TCP/IP protocols: Simultaneously supports ArtNet and LiDNet protocols, and supports secondary development integration.
11. It supports the UDP (LiDNet) protocol and serial RS232/485 instructions for direct control or broadcast control. It has rich instructions and is convenient for interconnection and interface with other intelligent systems.
12. It can independently or synchronously control music and lighting: It is both a professional lighting recorder and a professional audio player.
13. Supports direct recording of network ArtNet and DMX512 lighting effects.
14. There is no limit to the number of supported music and lighting effect files, and it supports both Chinese and English name control!
15. It supports quickly modifying all functional parameters of the configuration device through the SD card configuration file, facilitating remote modification of configuration functions for customers.
16. It supports managing SD card effect files through the network (within a local area network), making it more convenient to manage lighting effect files.
17. Supports automatic triggering of the backup lighting effect of the SD card when there is no light network signal.
18. It supports master-slave network synchronous output, facilitating cascading expansion. It also supports synchronous output of one domain ArtNet signal, making it convenient to control other ArtNet devices.
19. Supports SD card firmware upgrade, allowing users to upgrade the device's functional features by themselves! No need to return to the factory for function upgrades!
20. Supports the newly launched mobile App: LiDShow(Android/HarmonyOS), mobile variable intelligent light control console, supports debugging, configuration, recording, broadcasting, direct control of lights... Wait a moment.
21. Supports scheduled broadcast control by week and holiday (only models with calendar timing support).
