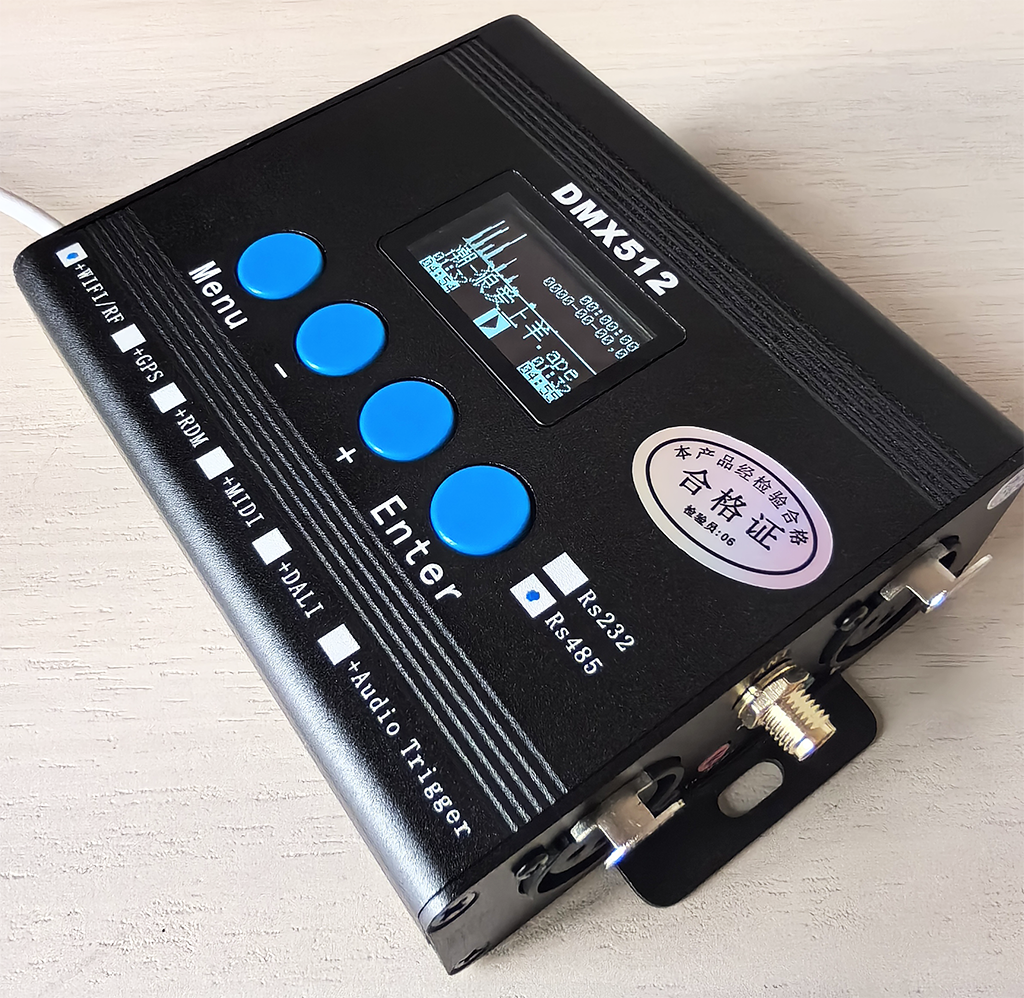

ArtNet+SD card lighting and audio synchronous recording and broadcasting central control UDP/485/232 command broadcasting control DMX lighting control console
Description：Equipment specifications and materials
(1) Aluminum alloy
(2) Equipment dimensions: 110x88x38mm (length x width x height);
(3) Main unit weight: 0.3kg;
(4) Operating temperature: -40 to 85 degrees; (5) Power supply: Voltage range: DC6V to 36V, current greater than 300mA.
- Product Details
- Details
1. Supports 2 standard DMX512 bidirectional photoelectric isolation protection ports, supports 512*2=1024 DMX channel control, and 2 ports support bidirectional mode switching of DMX input/output.
2. Supports synchronous broadcast control of music and lighting; The audio supports HiFi-level lossless decoding output. The supported audio formats include: mp3,wav,Flac, and ape.
3. Supports 1 audio line output (3.5mm head) and 1 audio line input (3.5mm head) + built-in Mic, with reserved audio input for future upgrades to voice control and other functions.
4. Supports high-definition OLED screen display and key menu quick playback control (play/pause/next track), audio and lighting progress time + file name display in both Chinese and English. Supports real-time waveform or spectrum dynamic display of audio, making sound visible (with screen version).
The integrated wireless WiFi router supports three network modes: wireless AP hotspot mode (Default), wireless AP+STA mode (AP Client), and Bridge mode (Bridge). The frequency band is 2.4G, the wireless rate is 150M, and the wireless communication distance (open space) is 50 to 100 meters.
6. Supports dual network ports for hand-in-hand cascading expansion for convenient wiring. The dual network ports can be directly connected to the network ports of computers, switches, routers, etc. for interconnection control.
7. Supports infrared remote control and external USB keyboard recording and broadcasting operations, etc.
8. Supports desktop or wall-mounted application installation. Power supply voltage range: DC6-36V, supports USB-Type-C power supply.
9. It supports the network TCP/IP protocol, as well as ArtNet and LiDNet protocols, UDP protocol and serial port RS232/485 command direct control or broadcast control. It has rich instructions and is convenient for interconnection and integration with other intelligent central control systems.
10. Supports direct recording of network ArtNet and DMX512 lighting effects, and supports real-time programming control of lighting with standard ArtNet output lighting programming software.
11. Configurable for independent or synchronous control of music and lighting: It serves as both a professional lighting recorder and a professional audio player.
12. There is no limit to the number of supported music and lighting effect files, and it supports both Chinese and English name control!
13. It supports the quick configuration of all functional parameters of the device through the SD card configuration file (config.txt), facilitating the remote configuration of device functions for customers.
14. Supports USB flash drive mode and online management of SD card lighting effect files and music files (within a local area network, similar to a cloud disk, online management of SD card files is more intelligent and convenient). 15. Supports large-capacity SD cards (128Mb to 256G) : Supported file formats include FAT/FAT32/exFAT.
16. Supports automatic triggering of the backup lighting effect of the SD card when there is no light network signal.
17. It supports the synchronous output of two domains by the network master and slave, facilitating cascading expansion. It also supports the synchronous output of one domain of ArtNet signals, facilitating the control of other ArtNet devices. 18. Supports SD card firmware update and upgrade. Users can control the upgrade of device functions by themselves without returning the device to the factory!
